IWR/BLB Series 10A DC-100A DC

Voltage Floating Automatic Battery Charger 12/24/36/48/60/72V Adjustable Battery Charger IWR/BLB Series 10A DC-100A DC

The Johsun IWR Voltage Floating Automatic Battery Charger is a versatile and high-performance charger that supports a wide range of output voltages, from 12V to 120V, making it suitable for various battery systems. With automatic charging modes, robust protection features, and customizable options, this charger is designed for industrial and commercial applications. It operates efficiently within a broad temperature range and offers OEM/ODM services to meet specific customer needs.

Output Voltage:12/24/36/48/60/72/84/96/108/120V
Maximun Output-Current:DC 10A/15A/20A/40A/60A/80A/100A
Mains Supply Voltage:220-240VAC 50-60Hz(Other voltages customization available)
Mains Protection:Reverse Polarity, Short Circuit

■ General

IWR battery charger is designed especially for charging weak battery(DC-Only)(e.g.Car battery,motorcycle,boat,etc).

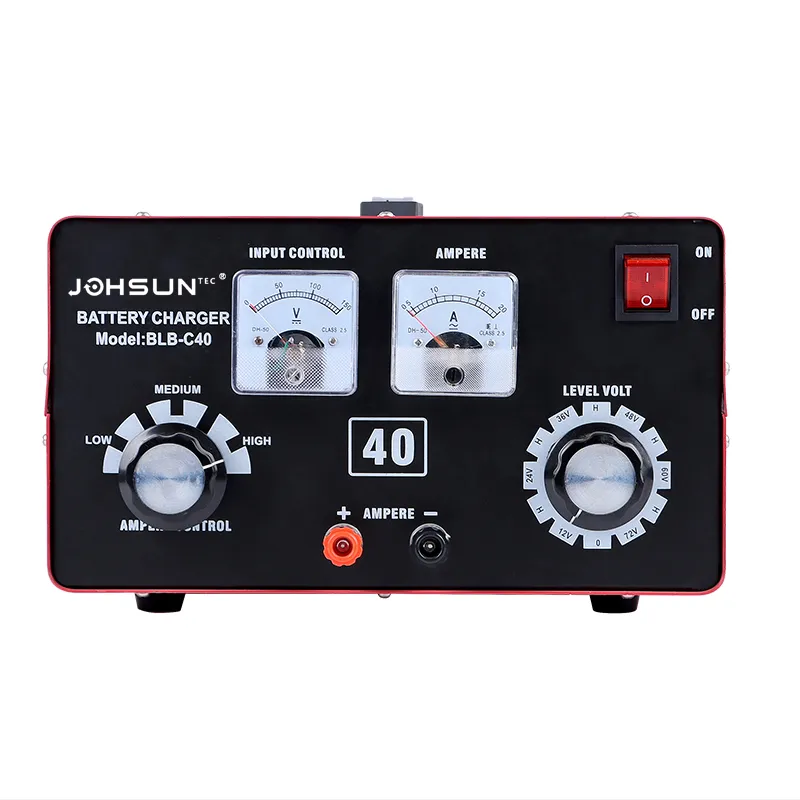

This unit is completed with Ampere Level Control(note:for 6 Amp and up)and level volt.

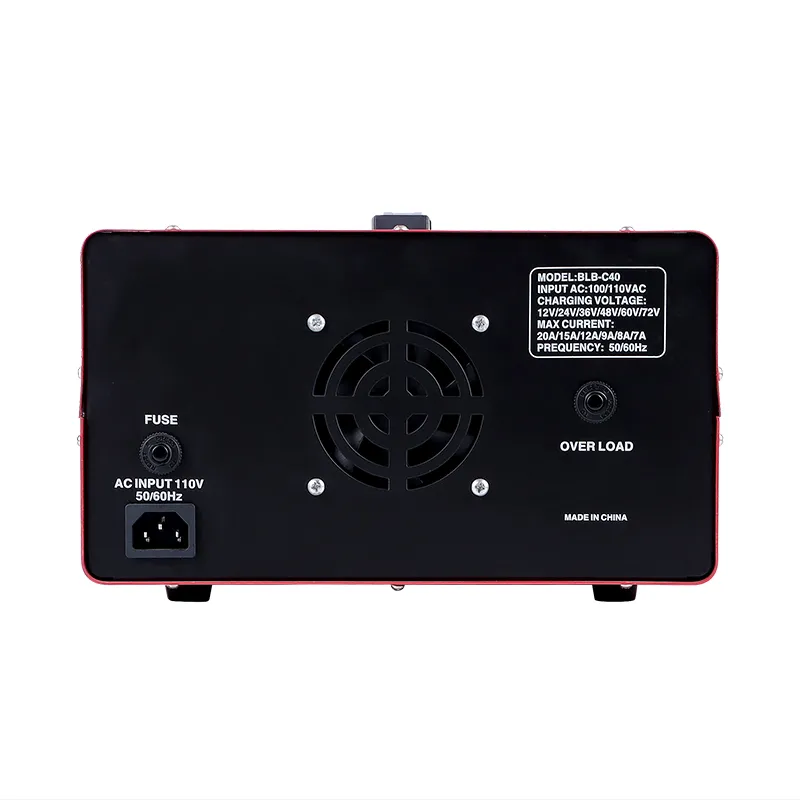

Abuilt up fan is also attached at rear of the unit to reduce heat during the operation.
This unit is also completed with fuse and ground control for extra protection if accident may occur.
This unit can be operated easily,even for first time user.
With floating current charging.

■ Technical Parameter

Model	IWR-10	IWR-15	IWR-20	IWR-40	IWR-60	IWR-80	IWR-100
Output voltage	12/24V	12/24V	12/24/36/48/60/72V	12/24/36/48/60/72/84/96/108/120V
Maximum output-current(Amps)	10A DC	15A DC	20A DC	40A DC	60A DC	80A DC	100A DC
Mains supply voltage	220~240Vac 50~60Hz(other voltages customization available)
Mains protection	Reverse polarity,short circuit
Output protection	Over load,short circuit,charging full
Temperature range	-10℃~45℃
Cabinet:W×D×H	200×110×250mm		240×133×303mm	280×155×330mm
Input voltage	220±10%
Frequency	50Hz/60Hz
Environment temperature	-10℃~+40℃
Relative humidity	80%
Charge mode	AUTOMATIC
Temperature rise ofwhole machine	≤6℃

Specifications

Technical Parameter of Johsun IWR Voltage Floating Automatic Battery Charger

Output Voltage:12/24/36/48/60/72/84/96/108/120V

Maximun Output-Current:DC 10A/15A/20A/40A/60A/80A/100A

Mains Supply Voltage:220-240VAC 50-60Hz(Other voltages customization available)

Mains Protection:Reverse Polarity, Short Circuit

Output Protection:Overload, Short Circuit, Charging Full

Temperature Range:-10℃~45℃

Input Voltage:220V±10%

Frequency:50/60Hz

Environment Temperature:-10℃~40℃

Relative Humidity:80%

Charging Mode:Automatic

Temperature Rise of Whole Machine:≤6℃

OEM/ODM:Accept with MOQ

Spare Parts:Discussion

Warranty:12 Months

Questions & Answers

1. What output voltage options does the Johsun IWR charger support?

The Johsun IWR charger supports multiple output voltages, including 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V, 108V, and 120V. This makes it compatible with a wide variety of battery systems.

2. What is the maximum output current of the charger?

The maximum output current options range from 10A to 100A, with specific models offering currents of 10A, 15A, 20A, 40A, 60A, 80A, and 100A. Users can select the appropriate model based on their battery capacity and charging requirements.

3. What protection features does the Johsun IWR charger offer?

The charger includes comprehensive protection features:

Mains protection: Reverse polarity and short circuit protection.
Output protection: Overload protection, short circuit protection, and automatic shutoff when the battery is fully charged. These features ensure safe operation for both the charger and the battery.

4. In what environmental conditions can the Johsun IWR charger operate?

The charger is designed to work in temperatures ranging from -10℃ to 45℃ and relative humidity up to 80%. It can handle various industrial environments while maintaining reliable performance.

5. Does Johsun offer customization or OEM/ODM services for this charger?

Yes, Johsun provides OEM/ODM services with a minimum order quantity (MOQ). Customers can customize features such as voltage configurations or design aspects to meet specific application requirements.
