Product Details

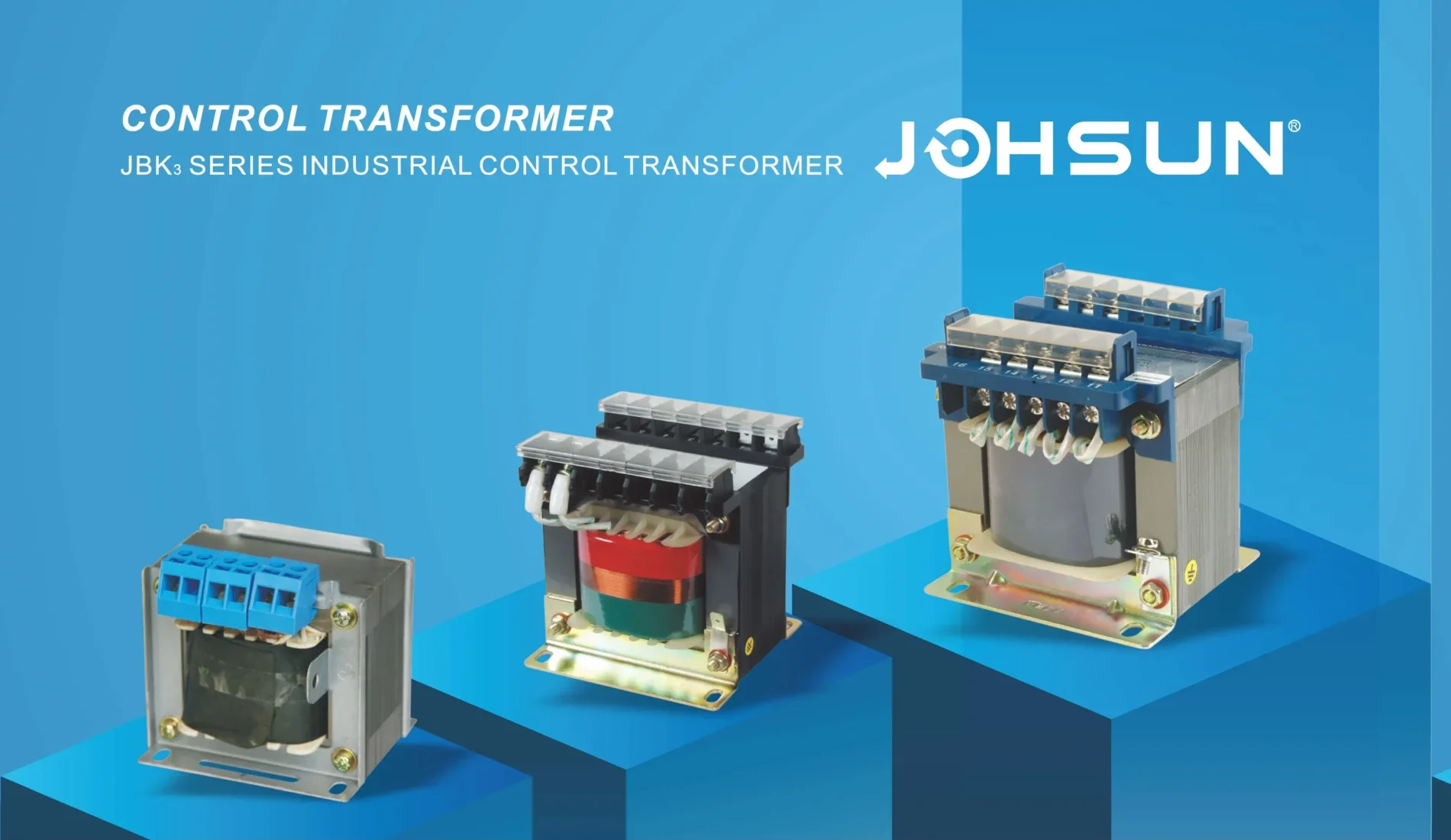

JBKsseries machine tool control transformer is a kind of new product by reference to sample of SIMENS Company,it accords with standards like VDE0550,IEC204-1,IEC439,GB5226,et.It is suitable forAC circuit of 50-60Hz,output rated voltage less than 220V, input rated voltage less than 500V,worked as control power supply for mechanical equipment and general electrical appliance and as powersupply for work lighting and signal lamp.
■ Specifications
| Type |
Rated capacity
(VA) |
Uel Rated Input
Voltage(V) |
Rated output voltage |
| Control |
Illumination |
Indication |
| JBK3-40 |
40 |
220±5%
380±5% |
110
(127) |
24
(36) |
6
(12) |
| JBK3-63 |
63 |
| JBK3-100 |
100 |
| JBK3-160 |
160 |
| JBK3-250 |
250 |
| JBK3-400 |
400 |
| JBK3-630 |
630 |
| JBK3-1000 |
1000 |
Distribution of capacity for different winding
may be according to the uses’request. |
| JBK3-1600 |
1600 |
| JBK3-2500 |
2500 |
Specifications

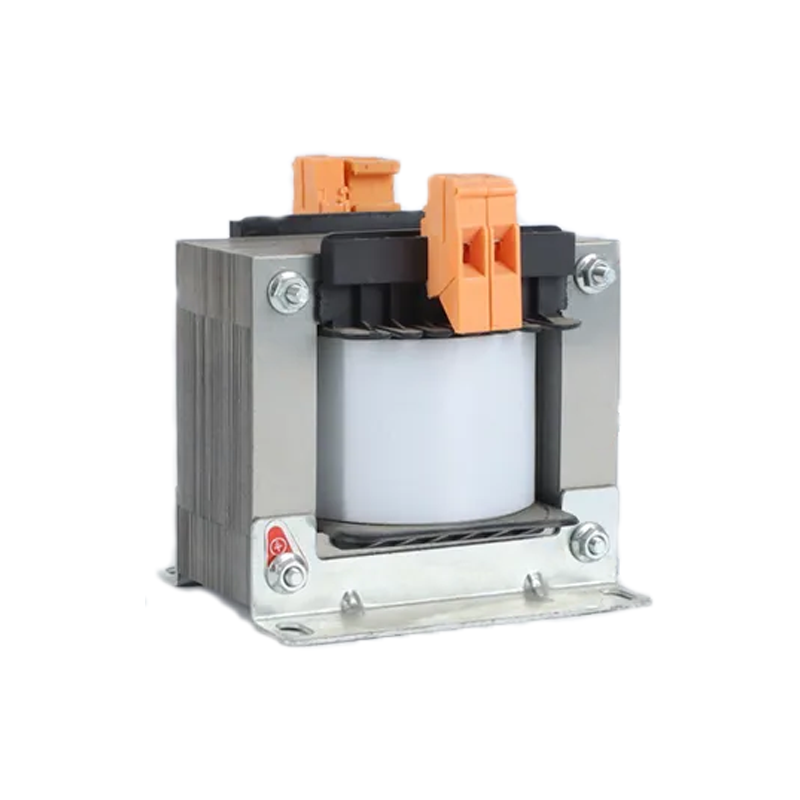

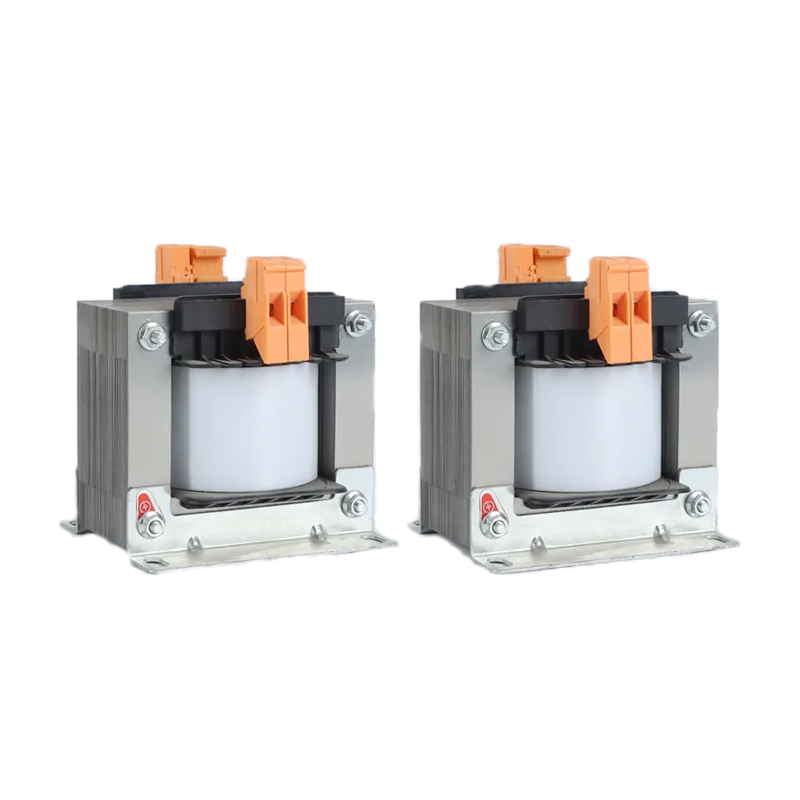

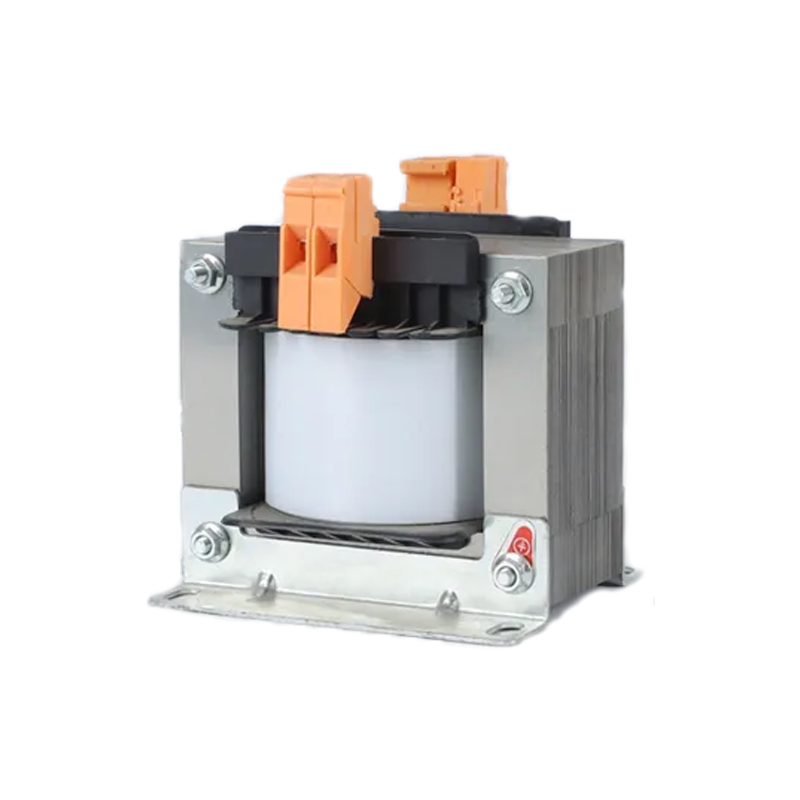

Technical Parameter of Johsun JBK3 Industrial Control Transformer
Power:40VA-2500VA
Input Voltage:220V±5% 380V±5%(Other Voltages Customization Available)
Output Voltage:110V/24V/12V(Other Voltages Customization Available)
Number of Phases:1
Type:Industrial Control Transformer
Input Connection:Terminal
Socket On the Body:No
Power Supply Frequency:50/60Hz
Operatin Temperature Rate:0℃~+40℃
OEM/ODM:Accept with MOQ
Spare Parts:Discussion
Warranty:12 Months
Questions & Answers
1. What is the power capacity range of the JBK3 Series?
The JBK3 Series offers a power capacity range from 40VA to 1500VA, making it suitable for small to large industrial control applications.
2. What are the typical applications of the JBK3 Series transformers?
The JBK3 Series is commonly used in:
- Industrial control circuits
- Machine tools
- Automation systems
- Control panels
It is designed to provide stable voltage for sensitive equipment in various industrial environments.
3. What type of protection features does the JBK3 Series offer?
The JBK3 Series includes several important protection features such as:
- Overload protection to prevent damage from excessive current.
- Short circuit protection to safeguard against electrical faults.
These features ensure safe and reliable operation in industrial settings.
4. What makes the JBK3 Series suitable for industrial environments?
The durable construction and high efficiency of the JBK3 Series make it well-suited for harsh industrial environments. It provides stable voltage conversion and isolation, which is essential for protecting sensitive control equipment from power disturbances.
5. Can the JBK3 transformers be used for both single-phase and three-phase systems?
The JBK3 Series is typically designed for use in single-phase systems, but it can be integrated into larger three-phase systems depending on the specific application requirements.
