Description
| Model No. | HYB |
| Brand | Johsun Tec / Johsun Tec |
| Trademark | Johsun, OEM or ODM |
| Type | DC/AC Inverter |
| Classification | Solar Inverter |
| Power Source | Solar Power |
| Phase | Single Phase |
| Main Circuit Type | Voltage |
| Nature of DC Power | Voltage Variable-Frequency Drive |
| Voltage of Power Supply | Low Voltage Variable-Frequency Drive |
| Output Type | Multiple |
| Output Wave Form | Pure Sine Wave |
| Output Voltage | 220VAC |
| Output Frequency | 50 / 60 Hz |
| Rated Power | 1 kW – 6 kW |
| Peak Power | 3 kW – 18 kW |
| Input Voltage Range | 175 – 275 VAC |
| Solar Controller | MPPT |
| Temperature Range | 0 ~ 50 ℃ |
| Humidity | < 95% |
| Size | 460 × 332 × 150 mm |
| Certification | CE |
| Customized Support | Yes |
| Packing | 1 Set Per Carton |
| Transport Package | Standard Export Carton and Colour Box Package |
| Origin | Zhejiang, China |
| HS Code | 8504403090 |
| Production Capacity | 1000 Piece/Pieces Per Month |
Product Description

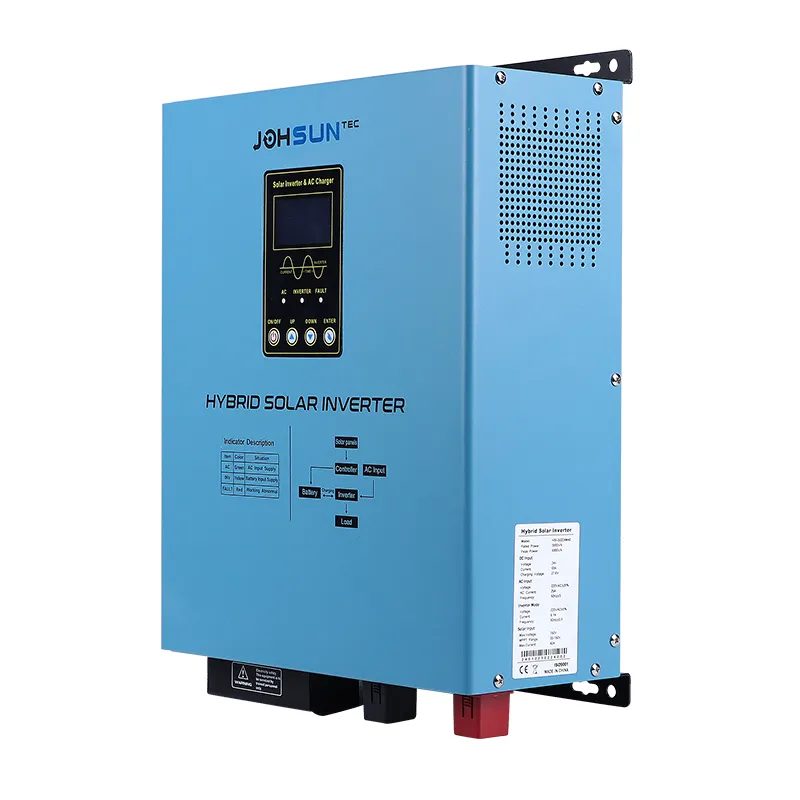

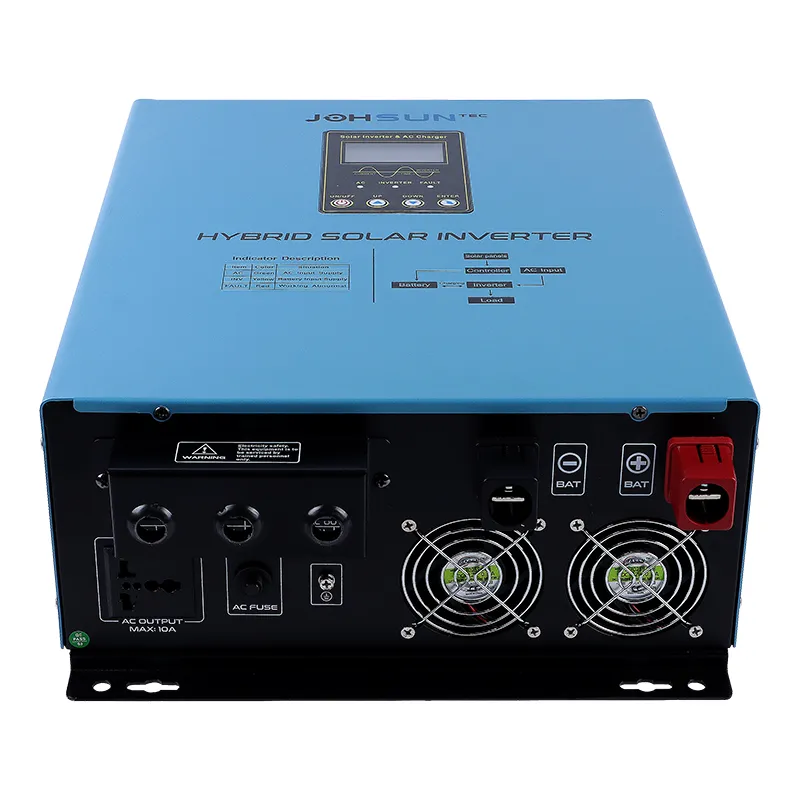

Off-grid Low Frequency Pure Sine Wave Hybrid Solar Inverter with MPPT Solar Charge Controller
Products Description
Product Name:HYBSeries Hybrid Charger Solar inverter 1000W-6000W
Mode1No.:HYB-1000/1500/2000/3000/4000/5000/6000
Classfication:Off-grid Charger Solar Inverter/Low frequency pure sine wave inverter

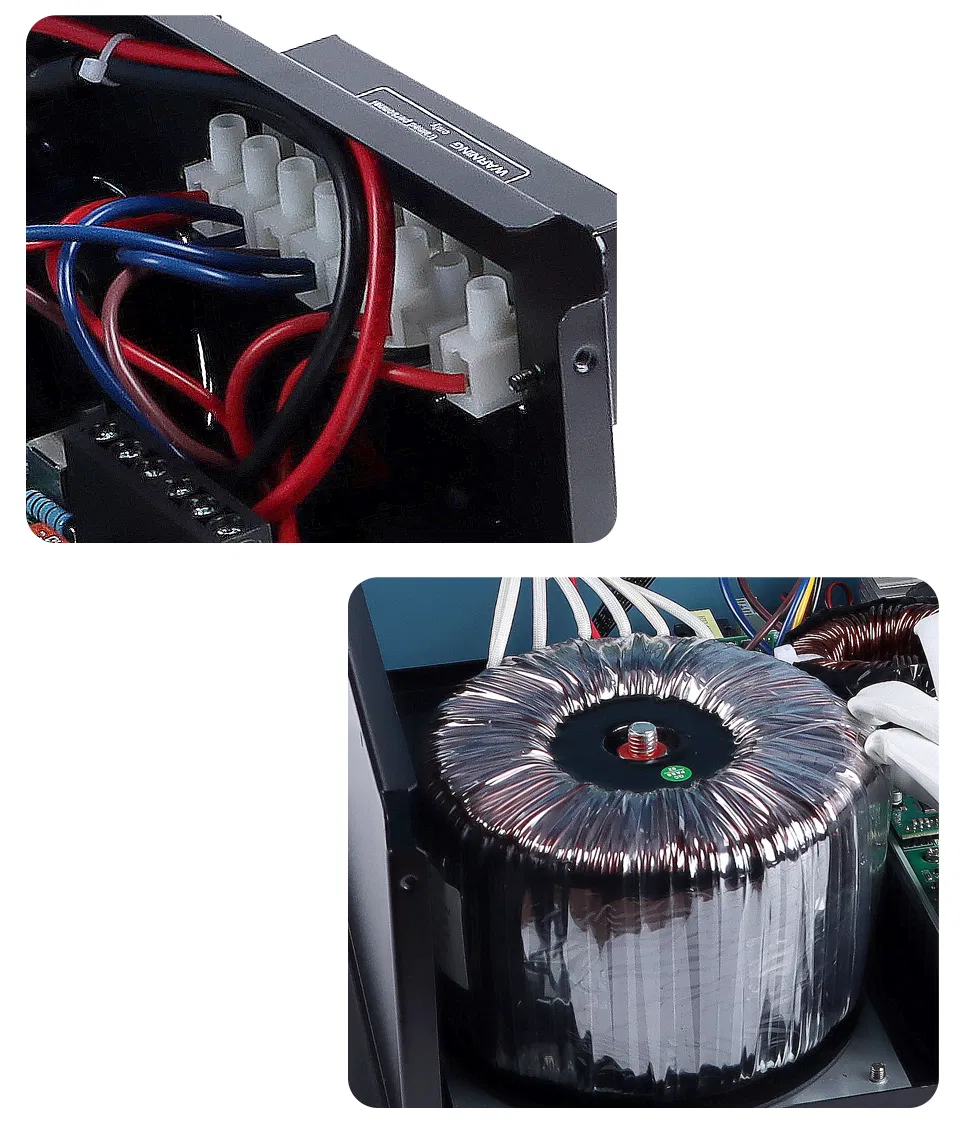

Introduction:Based on transformer technology,strong loading capacity.
Used for all kinds of home/office equipments,solar power system Technical Parameter Table
1.64-bits DSP Intelligent control chipset.
2.LED and LCD display with multi-function,Real-time display of dynamic values.
3.Built-in MPPT solar charging controller,maximize the solar energy.
4.Built-in automatic AC charger and automatic AC mains switcher.Switch time s5ms.
5.High Transfer efficiency is above 90%.
6.Continuous stable pure sine wave output with built-in AVR stablizer.
7.3 times surge power,excellent loading capability.
