SVC Series SVC-5KVA to SVC-90KVA

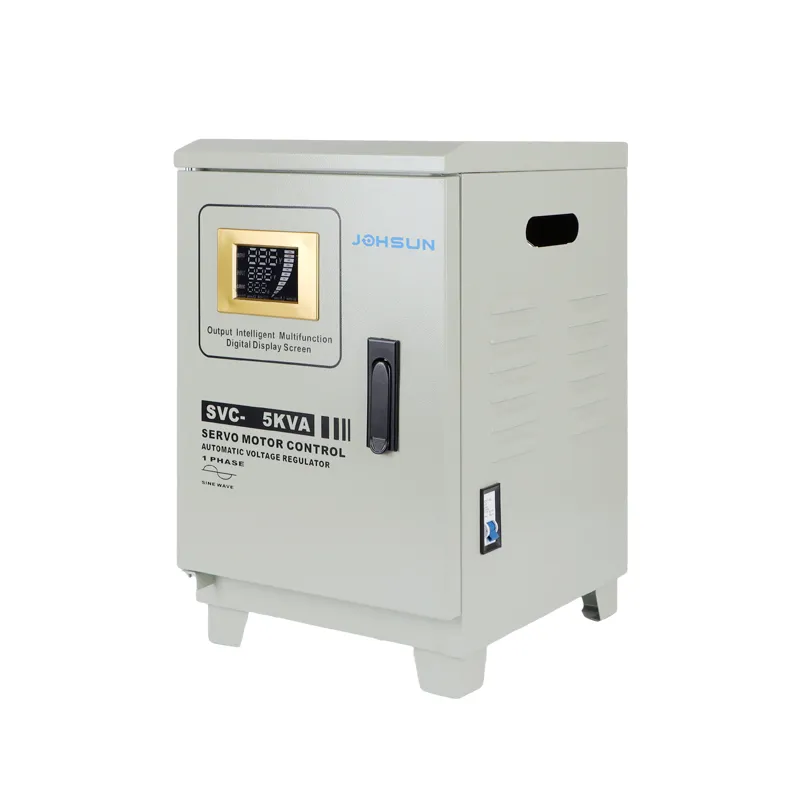

Single Phase Servo Motor Type Vertical Automatic Voltage Stabilizer SVC Series SVC-5KVA to SVC-90KVA

The Single Phase Servo Motor Type Vertical Automatic Voltage Stabilizer (SVC Series) is designed to provide stable voltage output for a wide range of electrical devices. Available in capacities ranging from 5KVA to 90KVA, this stabilizer is ideal for environments where voltage fluctuations are common, ensuring the safe and efficient operation of connected equipment. The SVC series stabilizers utilize a servo motor and automatic control circuit to regulate the output voltage with high precision, maintaining a steady voltage despite changes in input power or load. Key features include high efficiency, undistorted waveform, time-delay protection, and over-voltage protection, making it a reliable choice for both residential and commercial applications.
  • Capacity Range: 5KVA to 90KVA
  • Input Voltage: 160V-250V
  • Output Voltage: 220V ±3%
  • Efficiency: ≥95%
  • Protection: Time-delay, over-voltage, under-voltage
  • Servo Motor Control: Ensures precise voltage regulation
  • Applications: Suitable for homes, offices, industrial equipment, and any environment requiring stable voltage.
Share products to

Product Details

JOHSUN GROUP 017

Technical Parameter of Johsun SVC/TND3 Single Phase Servo Motor Type Digital Voltage Stabilizer

Power:5KVA-90KVA

Input Voltage:80-280VAC(Ultra low voltage wide range)/Other Voltages Customization Available

Output Voltage:110VAC/220VAC

Accuracy of Voltage Stabilization:110V±6% 220V±3%

Number of Phases:1

Max Input Voltage:280VAC

Min Input Voltage:80VAC

Type:Single Phase Digital High-Accuracy Vertical Servo Motor Type

Input Connection:Terminal

Socket On the Body:No

Indication:Digital LED Display

Efficiency:80%

Power Supply Frequency:50/60Hz

Operatin Temperature Rate:-5℃~+40℃

Adjustable Time:<1s(When Input Voltage has a change of 10%)

Waveform Distortion:No additional waveform distortion

Protection:Overload,overvoltage, overtemperature, undervoltage, circuit breaker etc.

OEM/ODM:Accept with MOQ

Spare Parts:Discussion

1.What is the input voltage range for the SVC series stabilizers?

The input voltage range for the SVC series is typically between 160V and 250V, ensuring stable operation even with significant fluctuations in the power supply.

2.How does the SVC stabilizer regulate voltage?

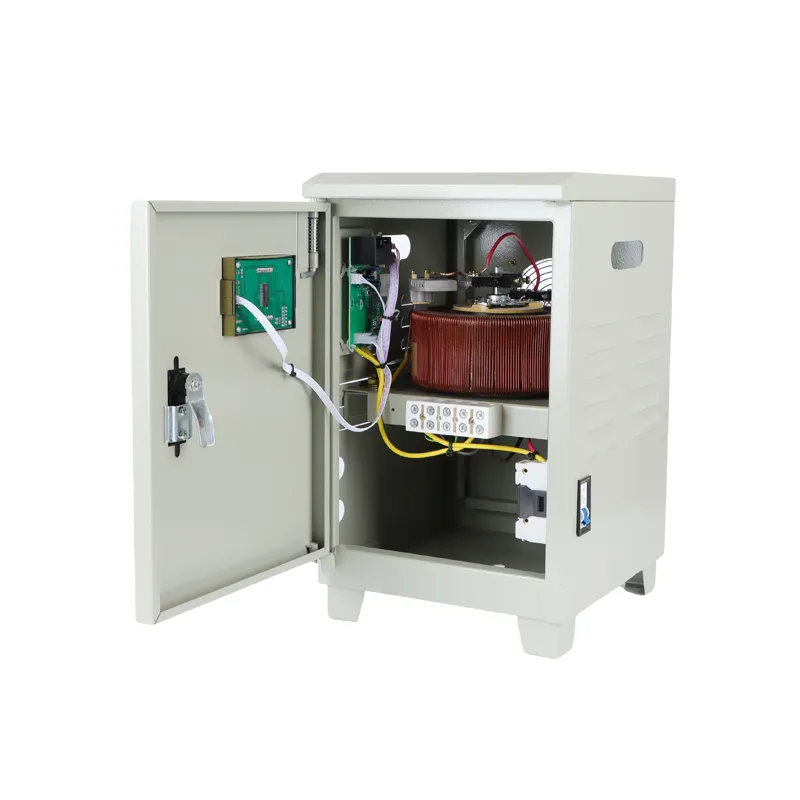

The stabilizer uses a servo motor and an automatic control circuit to adjust the position of the carbon brush on the autotransformer. This ensures that the output voltage remains within the specified range despite variations in input voltage or load changes.

3.What protection features are included in this stabilizer?

The SVC series includes several protection features such as over-voltage protection, under-voltage protection, and a time-delay function to safeguard connected devices from sudden power surges or drops.

4.Can this stabilizer be used continuously for long periods?

Yes, the SVC series is designed for long-term continuous operation with high reliability and efficiency, making it suitable for critical applications where uninterrupted power is essential.

5.What applications are suitable for this type of stabilizer?

The SVC series stabilizers are ideal for use in environments that require stable voltage such as homes, offices, medical equipment, industrial machinery, and other sensitive electronic devices that may be affected by power fluctuations.
