TSD Series TSD-3000VA to TSD-15KVA

Single Phase Servo Motor Type Wall Mount Automatic Voltage Stabilizer TSD Series TSD-3000VA to TSD-15KVA

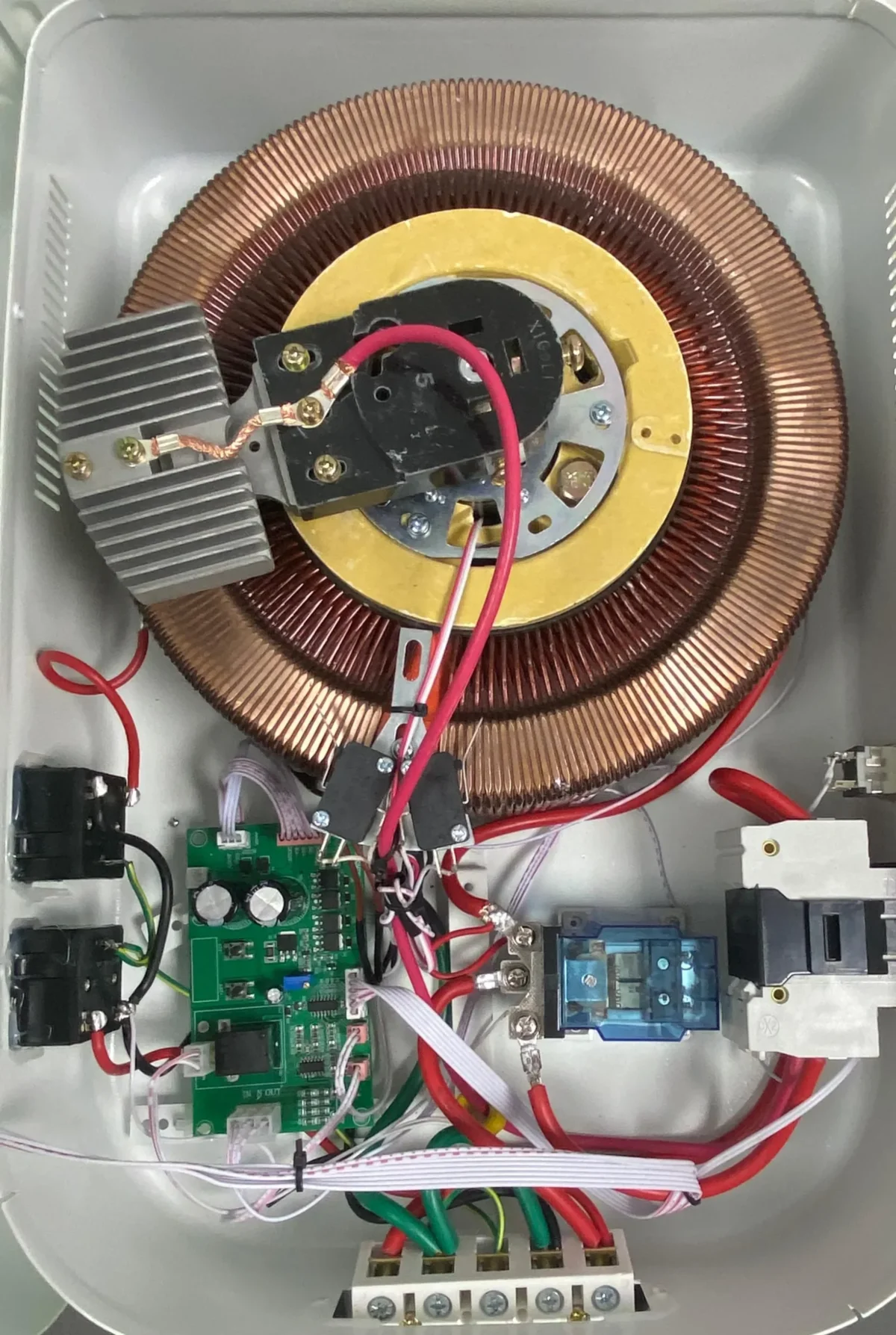

The Single Phase Servo Motor Type Wall Mount Automatic Voltage Stabilizer (TSD Series) is designed to offer reliable voltage regulation for residential and light commercial applications. With capacities ranging from 3000VA to 15KVA, this series is ideal for protecting sensitive electronic devices from voltage fluctuations that can cause damage or reduce performance. The TSD series stabilizers use a servo motor-driven mechanism to maintain a stable output voltage, ensuring the safe and efficient operation of connected equipment. These stabilizers are compact and wall-mountable, making them a convenient choice for space-constrained environments.

Capacity Range: 3000VA to 15KVA
Input Voltage: 140V-260V
Output Voltage: 220V ±3%
Efficiency: High efficiency with minimal energy loss
Protection: Over-voltage, under-voltage, and short-circuit protection

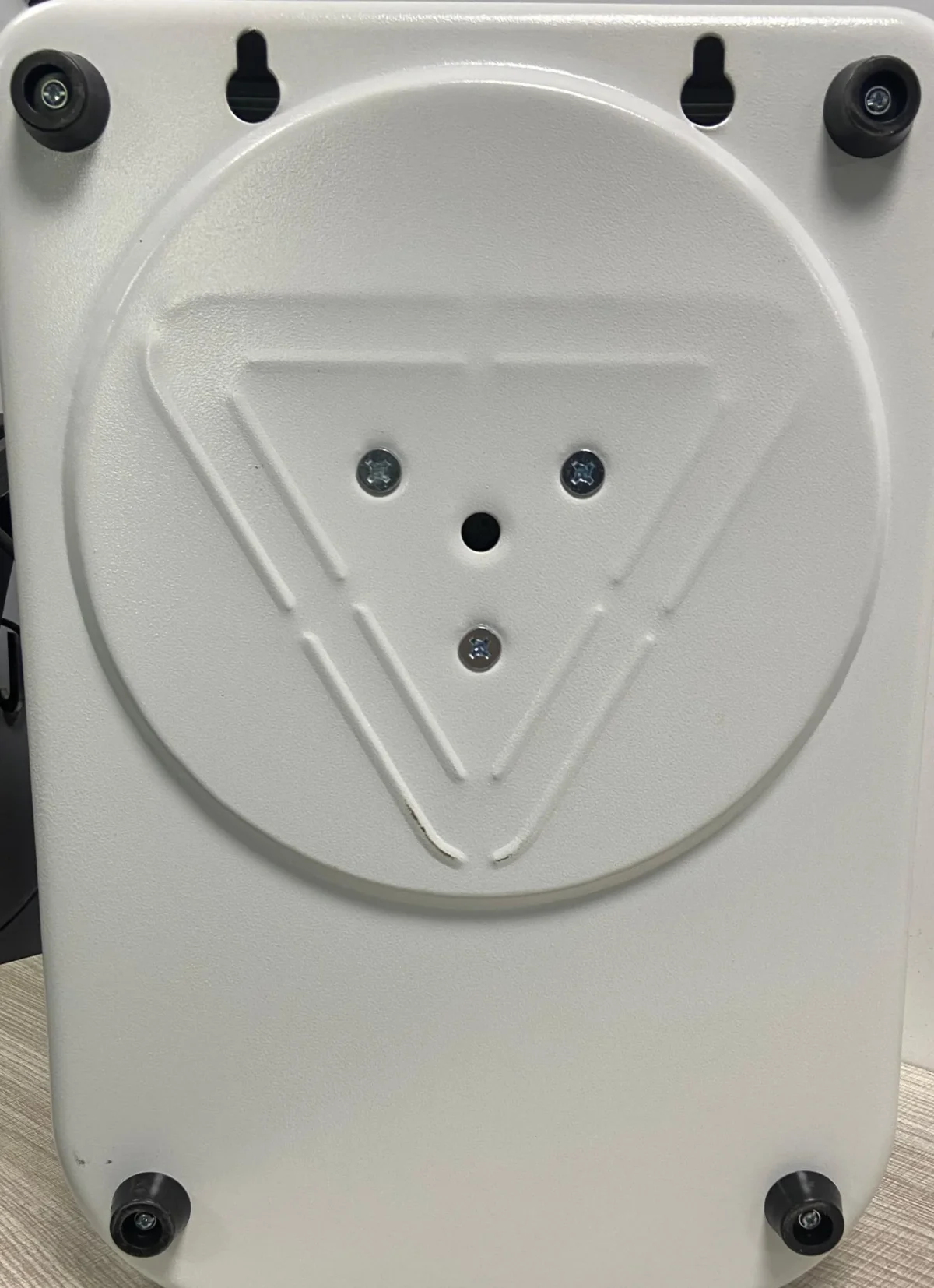

Mounting: Wall-mount design for easy installation
Applications: Suitable for homes, small offices, and other environments with limited space.

Share products to

Product Details

Specifications

Technical Parameter of Johsun TSD/WMS Single Phase Servo Motor Type Wall Mount Digital Voltage Stabilizer

Power:3KVA-15KVA

Input Voltage:80-280VAC(Ultra low voltage wide range)/Other Voltages Customization Available

Output Voltage:220VAC

Accuracy of Voltage Stabilization:220V±3%

Number of Phases:1

Max Input Voltage:280VAC

Min Input Voltage:80VAC

Type:Single Phase Digital High-Accuracy Wall Mount Servo Motor Type

Input Connection:Plug/Terminal

Socket On the Body:Yes

Indication:Digital LED Display

Efficiency:80%

Power Supply Frequency:50/60Hz

Operatin Temperature Rate:-15℃~+45℃

Adjustable Time:＜1s(When Input Voltage has a change of 10%)

Waveform Distortion:No additional waveform distortion

Protection:Overload,overvoltage, overtemperature, undervoltage, circuit breaker etc.

OEM/ODM:Accept with MOQ

Spare Parts:Discussion

Questions & Answers

1.What input voltage range does the TSD series support?

The TSD series supports an input voltage range of 140V to 260V, allowing it to handle common voltage fluctuations in residential and small commercial settings.

2.How does the wall mount design benefit users?

The wall mount design of the TSD series saves floor space and allows for easy installation in areas where space is limited, making it ideal for homes and small offices.

3.What protection features are included in this stabilizer?

The TSD series includes essential protection features such as over-voltage protection, under-voltage protection, and short-circuit protection, ensuring the safety of connected devices.

4.Is the TSD series suitable for continuous use?

Yes, the TSD series is designed for continuous use, providing consistent voltage regulation to ensure the longevity and performance of connected electronic devices.

5.What types of applications are best suited for this stabilizer?

The TSD series is best suited for residential applications, small offices, and environments where maintaining stable voltage is crucial for the operation of sensitive electronics such as computers, televisions, and home appliances.
