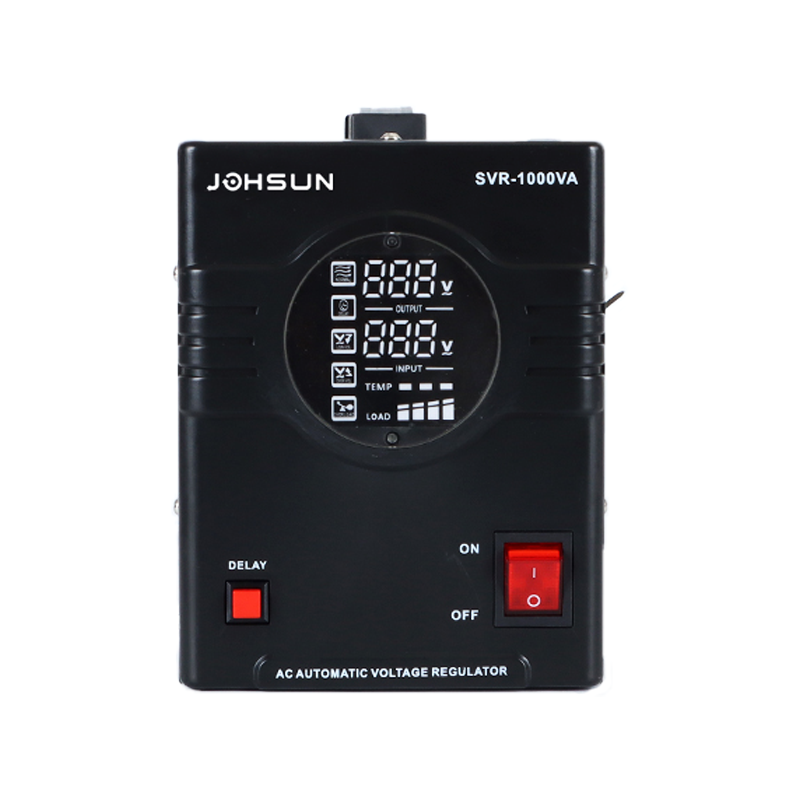

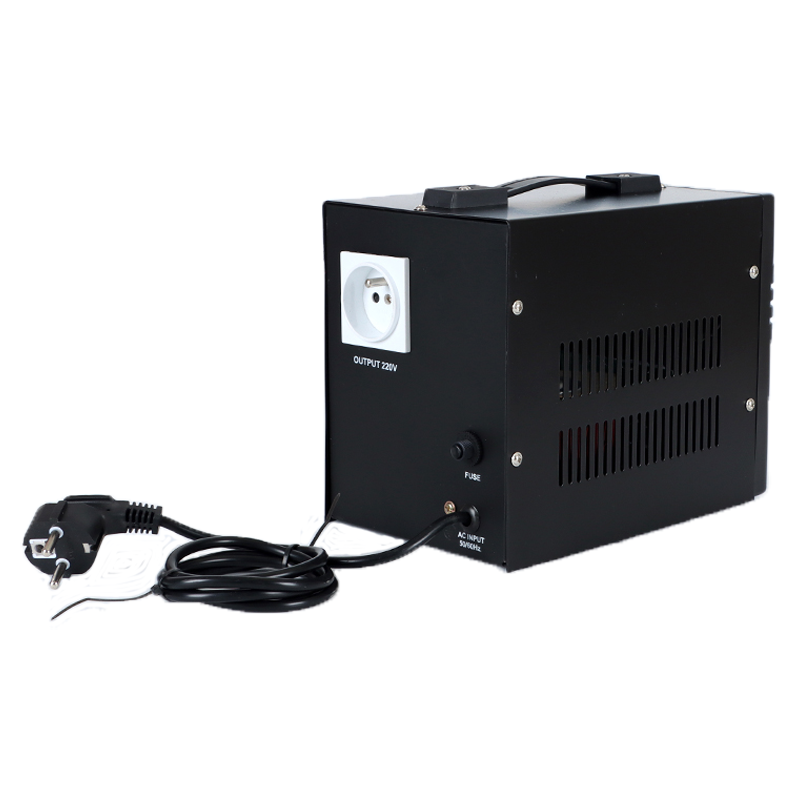

0.5KVA–10KVA Digital Automatic Voltage Stabilizer Single Phase Relay Type Plastic Housing CVR Series

CVR Series single phase digital voltage stabilizer (0.5–10KVA) features relay control, ±2% high-precision regulation, overload protection, and real-time display, delivering stable and reliable power for home and office equipment.

Power: 0.5KVA-10KVA

Input Voltage: 160-280VAC(Other Voltages Customization Available)

Output Voltage: 220VAC

Accuracy of Voltage Stabilization: 220V±8%

Description

Technical Parameters

Model	CVR-0.5KVA	CVR-1KVA	CVR-1.5KVA	CVR-2KVA	CVR-3KVA	CVR-5KVA	CVR-8KVA	CVR-10KVA
Power	0.5KVA	1KVA	1.5KVA	2KVA	3KVA	5KVA	8KVA	10KVA
Technology	Relay Type CPU Control
LEDIntelligent Screen Display	Meter			Output Voltage/lnput Voltage
Protection	Over Voltage			Outputvoltage≤248±4V
	Over Loading			More than120%
	Over Temperature			120℃±10℃
	Circuit Breaker			Regulator/By-Pass
Input voltage	160-280VAC(othervoltages customization available)
Output voltage	220V±8%Adjustable
Frequency	50HZ/60HZ
Phase	Single Phase
Efficiency	≥95%
Ambienttemperature	-15℃*-45℃
Relative humidty	<95%
Waveform distortion	No additional wave form distortion
Insulating resistance	Normally more than 20
