The debate over copper vs aluminum transformer windings is one of the oldest in electrical purchasing, and it is usually settled with a rule of thumb rather than numbers. Copper is “better”, aluminium is “cheaper”, and the discussion stops there. That shortcut is why so many buyers end up with a unit that is either over-specified for the job or quietly wrong for the installation.
Winding material drives four things that show up on a purchase order and later in service: material cost, transformer weight, physical size, and long-term joint reliability. This guide puts numbers against each one so you can decide on the application rather than the habit. It applies to dry-type and oil-filled distribution units as well as to the step-up and step-down transformers used to run imported machinery on a local supply.

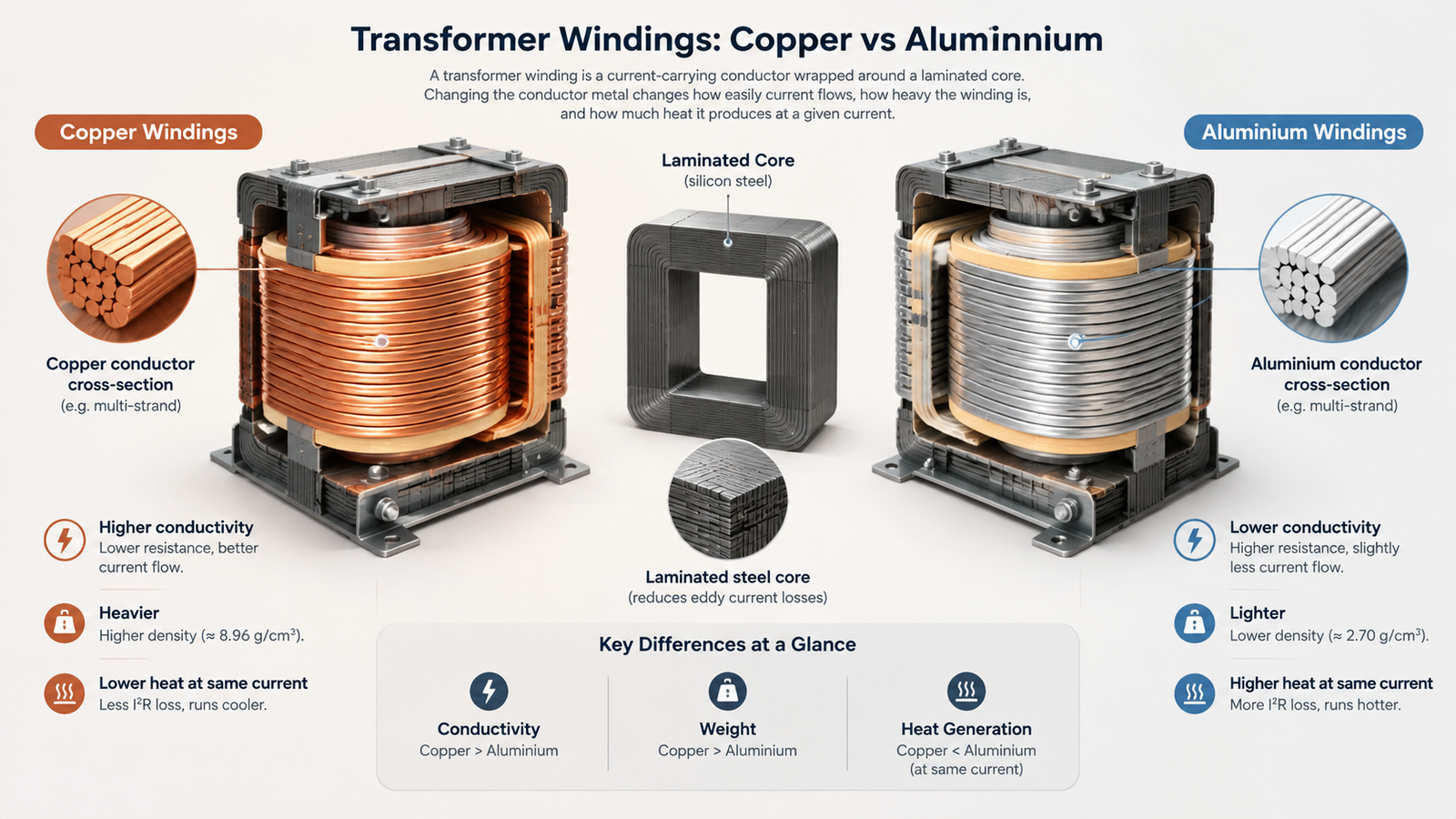

A transformer winding is a current-carrying conductor wrapped around a laminated core. Change the conductor metal and you change three physical properties at once: how easily current flows, how heavy the winding is, and how much heat it produces at a given current.
Everything downstream — core size, tank or enclosure volume, cooling class, shipping cost, and termination method — follows from those three. That is why material choice is a design decision, not a line-item saving applied at the end.
| Property | Copper (Cu) | Aluminium (Al) | Practical consequence |
|---|---|---|---|
| Electrical conductivity | ~100% IACS | ~61% IACS | Aluminium needs a larger cross-section for the same current |
| Resistivity | ~1.7 × 10⁻⁸ Ω·m | ~2.8 × 10⁻⁸ Ω·m | Higher resistive loss per metre in aluminium |
| Density | ~8.96 g/cm³ | ~2.70 g/cm³ | Aluminium winding is about a third the weight |
| Conductivity per unit weight | Baseline | About twice copper | Weight-critical designs favour aluminium |
| Thermal expansion | Lower | Higher | Aluminium joints need more careful design |
| Raw material price | Higher and volatile | Lower and steadier | Aluminium reduces exposure to copper price swings |

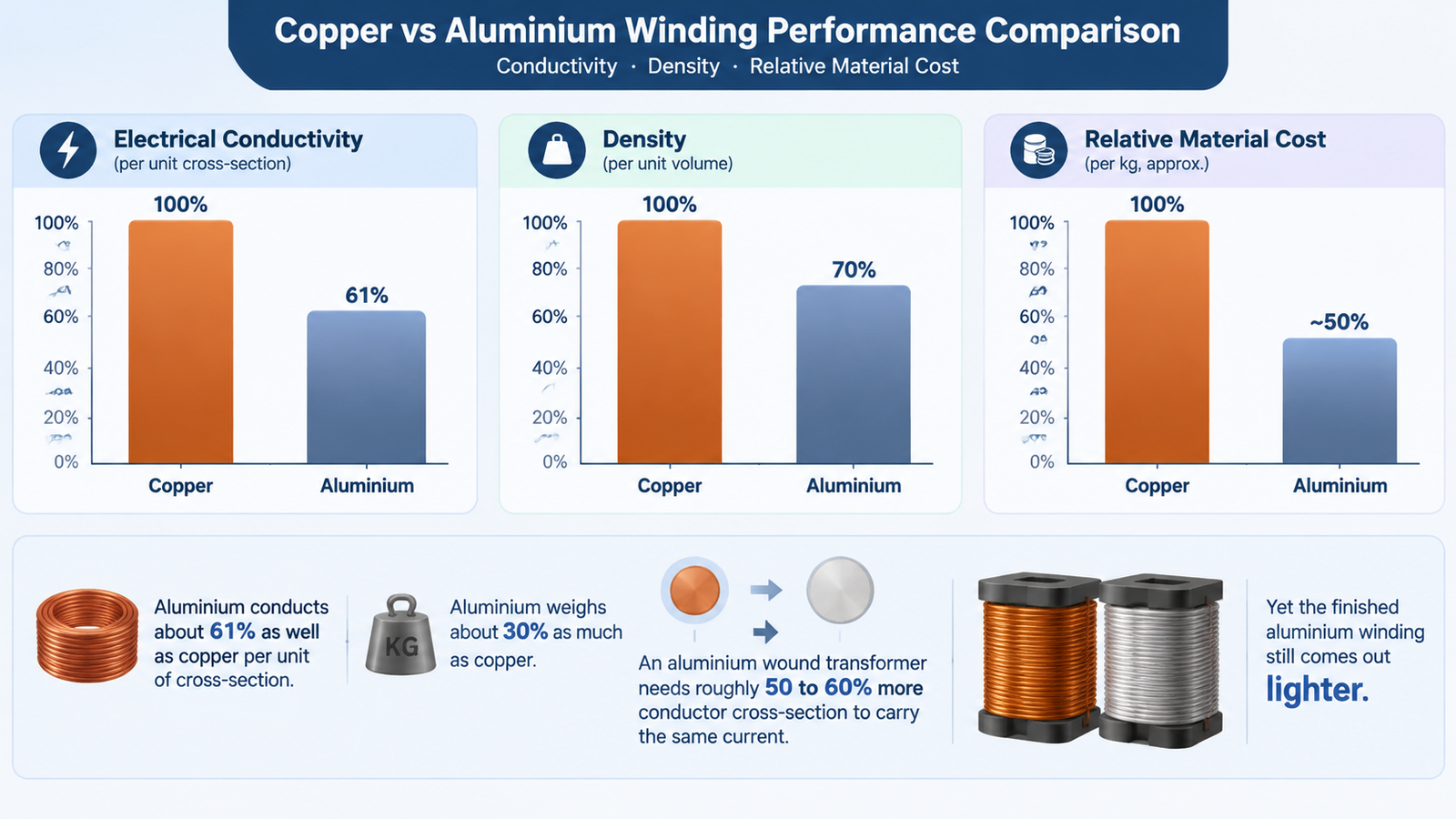

The single most useful takeaway from that table: aluminium conducts about 61% as well as copper per unit of cross-section, but weighs about 30% as much. In practice an aluminium-wound transformer needs roughly 50–60% more conductor cross-section to carry the same current, yet the finished winding still comes out lighter.
Aluminium is cheaper per kilogram than copper by a wide margin, and it is far less volatile on the commodities market. For a manufacturer quoting a batch of units, that translates into a lower and more predictable material cost, part of which is passed on to the buyer.
But the purchase price saving is not the whole cost picture. Two other factors move in the opposite direction:
The net result in most distribution sizes is a genuine but moderate price advantage for aluminium — typically meaningful on a 10 kVA class unit, smaller on very small control transformers where conductor cost is a minor share of the total.
This is the clearest win for aluminium. A transformer weight reduction of 20–40% is common for the same rating, and that has knock-on effects buyers often forget to price in:
For a fixed indoor installation with a prepared foundation, weight rarely decides the purchase. For portable units, export shipments, or installations on lightweight structures, it often does.
Load loss — the copper loss in the windings — is a function of winding resistance. Because aluminium has higher resistivity, an aluminium-wound transformer designed to the same loss class will be physically larger. Designed to the same physical size, it will run hotter.
Most manufacturers resolve this by keeping the losses within the same standard class and accepting a slightly larger footprint. That is the honest comparison to make: at equal efficiency class, aluminium units are bigger but perform the same; at equal size, they are less efficient and run warmer.
Operating temperature feeds straight into insulation life, which is why winding material and thermal class belong in the same conversation. If you are comparing units across materials, check the insulation class and temperature rise on the plate rather than assuming — the method is set out in how to read a transformer nameplate. Persistent overheating, whichever metal is used, is covered in causes and hazards of transformer overheating.

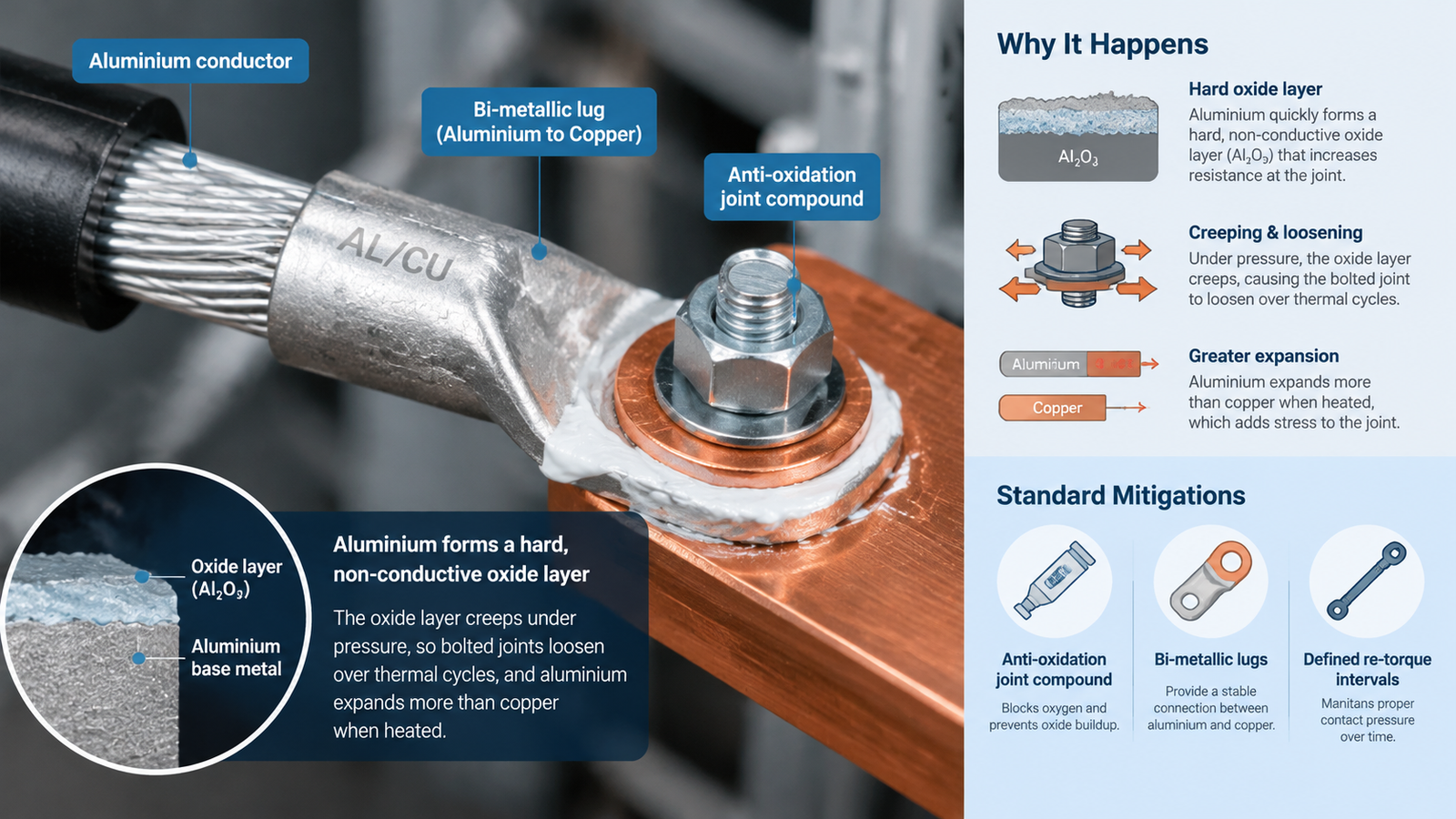

Almost every aluminium winding failure that reaches a service engineer starts at a joint, not in the winding itself. Aluminium behaves differently from copper at a connection in three ways:
Joining aluminium directly to copper without protection creates a galvanic couple that corrodes the joint. The standard mitigations are well established: anti-oxidation joint compound, bi-metallic lugs or transition washers, correctly rated compression terminations, and a defined re-torque interval during maintenance.
Whichever material you choose, make the comparison explicit instead of implied. Ask suppliers for:
That list turns a price-only comparison into a like-for-like one. It also protects you when two quotations look similar but describe very different transformers — a point we return to in low-voltage transformer core specs and selection checklist.
If you are sizing a high-capacity unit where weight and price both matter, our DT-10000VA step-up and step-down transformer is a useful reference point — send us your load profile and installation constraints and we will quote both winding options side by side.
Yes, when the transformer is designed for aluminium and the terminations are built and maintained correctly. Most aluminium-related failures trace back to poorly made joints, not to the winding conductor itself.
Aluminium has roughly a third the density of copper. Even though the aluminium conductor needs a larger cross-section to carry the same current, the finished winding and the core built around it are still lighter overall.
Not if the transformer is designed to the same loss and temperature-rise class — the manufacturer compensates with more conductor cross-section. Problems appear when an aluminium unit is built to a copper-sized frame without that compensation.
Not without protection. Use bi-metallic lugs or transition washers plus anti-oxidation compound, and follow the manufacturer’s torque values with a defined re-torque interval.
