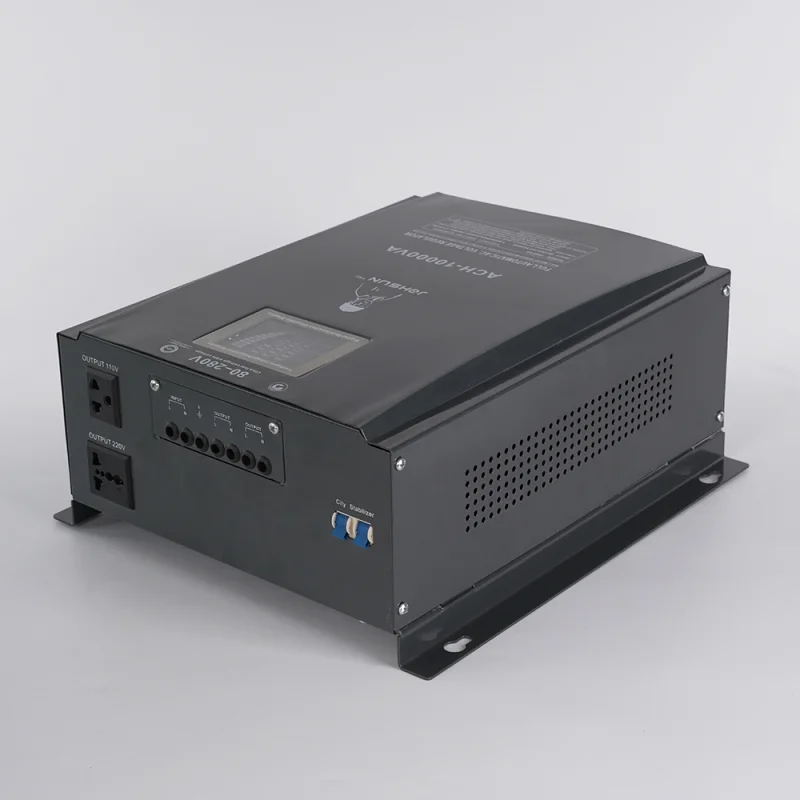

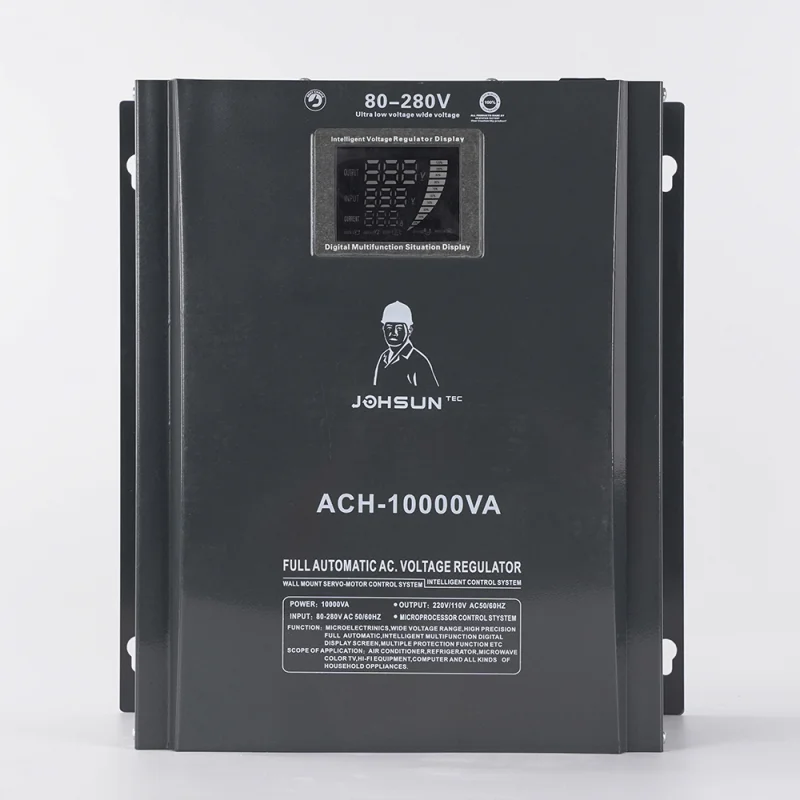

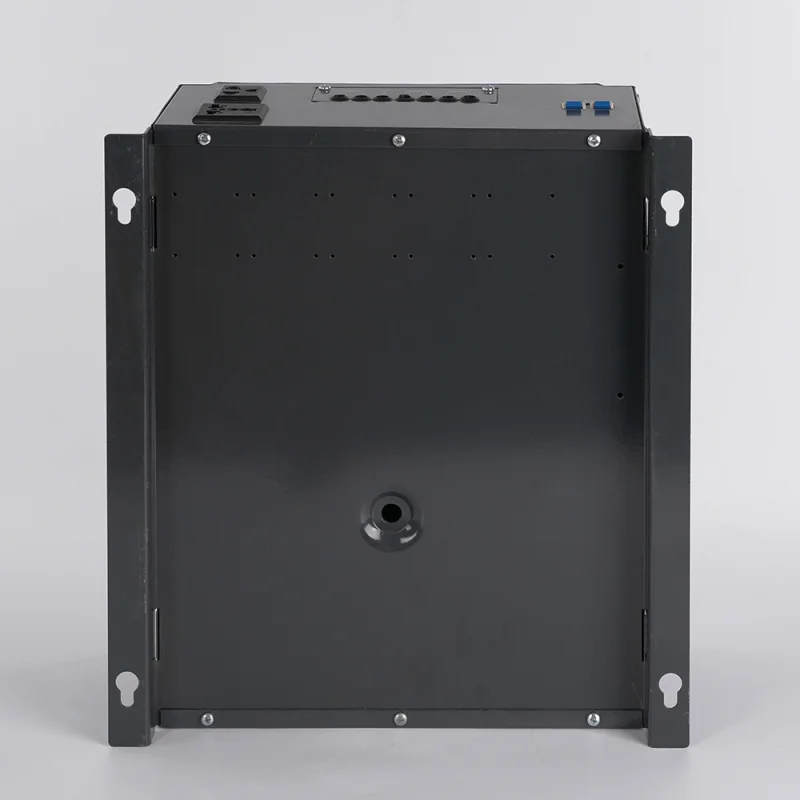

Voltage Stabilizer ACH Series ACH-0.5KVA to ACH-10KVA

Single Phase Relay Type Wall Mount Digital Automatic Voltage Stabilizer ACH Series ACH-0.5KVA to ACH-10KVA

The ACH Series Single Phase Relay Type Wall Mount Digital Automatic Voltage Stabilizer is a high-precision voltage regulator designed to provide stable power supply for home and small office environments. Available in power ratings ranging from 0.5KVA to 10KVA, this stabilizer ensures reliable voltage regulation with low loss, instant overload protection, and low noise operation. It features a modern digital circuit board that enhances security and provides efficient protection against voltage fluctuations, including over-voltage, under-voltage, and temperature-related issues. The ACH series is ideal for safeguarding sensitive electrical equipment from damage caused by unstable power supply.
  • Voltage stabilization: Maintains output at 220V ±2%.
  • Overload protection: Automatically cuts off power during overload or short circuits.
  • Temperature protection: Shuts down when internal temperature exceeds 115°C and restarts when it drops below 100°C.
  • Selectable delay protection: Prevents sudden voltage surges during startup.
  • Wide input voltage range: AC 150V – 270V.
Request Quote

Product Details

JOHSUN GROUP_页面_025

■ Technical parameters

  1. Relay/microprocessorcontrol(CPU)
  2. Wide range voltage regulation
  3. Technology:classis series,toroidal transformer,relay type
  4. Automatic voltage regulation
  5. Display:LED digital display
  6. Protection functions:short circuit,overvoltage,overtemperature,low voltage
  7. Waveform distortion:no additional waveform distortion
  8. Dielectric strength:1500V/1min
  9. Insulation resistance:≥2MQ

■ Specifications

■ Specifications
ACH-1000VA/1500VA/2000VA/3000VA/5000VA8000VA/10000VA
Input voltage100-260VAC(othervoltages customization available)
Input frequency50/60Hz
Output voltage220VAC/110VAC
Output precision220V+/-8%,110V+/-10%
Time delay5’sshorttime,180’s longtime
Efficiency:>90%
Load powerfactor0.8
Phasesingle phase
Operatingtemperature0~40℃
Storagetemperature-15℃-45℃
Operating relative humidity10%RH~102%RH
Customize option for specification and availability please contact TAILEI

■ Dimension & Weight

MODELQTY/CTNMEAS(cm)G.W.

(kg)

N.W.

(kg)

CONTAINER20

(PCS)

ACH-500VA440*27*3514.813.82900
ACH-1000VA468*31*2315.6614.62300
ACH-1500VA468*31*2318.8417.82300
ACH-2000VA468*31*2320.719.72300
ACH-3000VA254.5*43*3119.918.8760
ACH-5000VA254.5*43*3123.622.6760
ACH-8000VA

1

47.5*28.5*3116.815.8660
ACH-10000VA

1

47.5*28.5*3118.617.6660

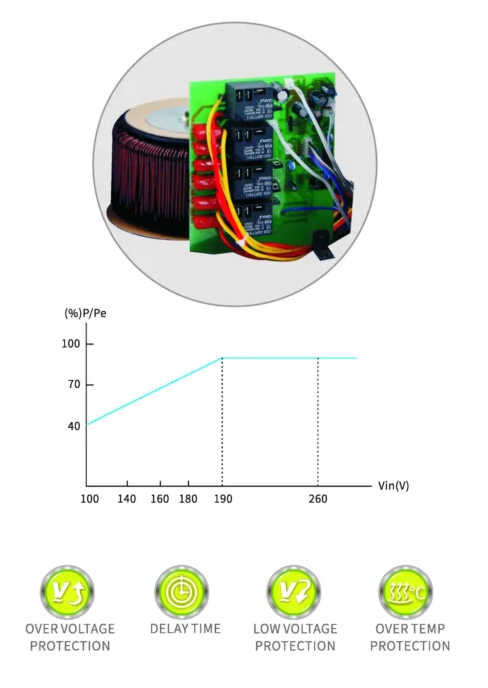

JOHSUN-GROUP_页面_025-1520x2048

Specifications

Technical Parameter of Johsun ACH Single Phase Relay Type Intelligent Digital Wall Mount Voltage Stabilizer

Power:500AV-10000VA

Input Voltage:140-260VAC(Other Voltages Customization Available)

Output Voltage:110VAC/220VAC

Accuracy of Voltage Stabilization:110V±10%，220V±8%

Number of Phases:1

Max Input Voltage:260VAC

Min Input Voltage:140VAC

Type:Wall Mount Single Phase Intelligent Digital Relay Type

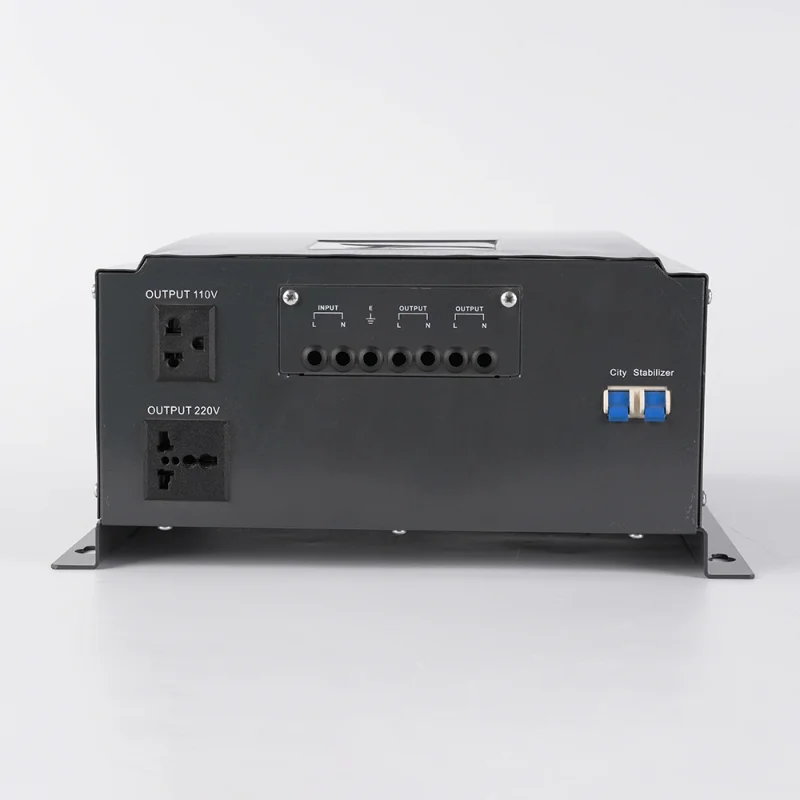

Input Connection:Plug/Terminal

Socket On the Body:Yes

Indication:Digital LED Display

Efficiency:80%

Power Supply Frequency:50/60Hz

Operatin Temperature Rate:0℃~+40℃

Protection:Short Circuit,overload,overvoltage, overtemperature, undervoltage, circuit breaker etc.

OEM/ODM:Accept with MOQ

Spare Parts:Discussion

Waveform Distortion:no additional waveform distortion

Questions & Answers

1.What is the input voltage range of the ACH Series Stabilizer?

The ACH Series stabilizer operates within an input voltage range of AC 150V to 270V, making it suitable for areas with fluctuating power supply.

2.How does the ACH Series protect against overheating?

The stabilizer features a built-in temperature protection system that cuts off power if the internal temperature exceeds 115°C, and resumes operation when the temperature falls below 100°C.

3.Can the ACH Series handle overloads or short circuits?

Yes, the ACH Series is equipped with instant overload and short circuit protection to ensure safe operation of connected devices.

4.What is the efficiency rating of the ACH Series Stabilizer?

The stabilizer operates at an efficiency of up to 98%, ensuring minimal energy loss during operation.

5.Is there a delay feature to protect against sudden voltage spikes?

Yes, the stabilizer includes a selectable delay feature (3-7 seconds or 3-7 minutes) to prevent sudden voltage spikes when restarting after a power outage.
