Description
DT-5000VA Full Power Step Up And Down Voltage Converter Transformer
- Sockets optional
- Carrying handle
- Input voltage selector
- ON/OFF switch
- Fuse/MCB protection
- Warranty:one year from delivery
Functions
- This voltage converter can be used in 110volt countries and 220 volt countries.It ill convert from 220-240 volt to 110-120 volt and from 110-120volt to 220-240volt.
- Precise input voltage selection according to the country where it is being used.
- Input voltage selector:110V-120V-220V-240 volt(other voltages customization available)
- Output:110/220-120/240 Volt
- Suitable for Water Dispenser, Printer Rice Cooker, Fan, Fax Machine, Air Machine, Computer.
| Model | Capacity | Package Size
(cm) |
Qty/Package |
| ST/DT-100 | 100w | 41.5×27×38 | 12PCS |
| ST/DT-200 | 200W | 41.5×27×38 | 12PCS |
| ST/DT-300 | 300W | 48×29×41 | 12PCS |
| ST/DT-500 | 500W | 48×29×41 | 12PCS |
| ST/DT-750 | 750W | 48×29×41 | 12PCS |
| ST/DT-1000 | 1000W | 49.5×33×21 | 2PCS |
| ST/DT-1500 | 1500W | 49.5×33×21 | 2PCS |
| ST/DT-2000 | 2000W | 49.5×33×21 | 2PCS |
| ST/DT-3000 | 3000W | 54.5×33×24.5 | 2PCS |
| ST/DT-4000 | 4000W | 54.5×33×24.5 | 2PCS |
| ST/DT-5000 | 5000W | 54.5×33×24.5 | 2PCS |
| ST/DT-7500 | 7500W | 42.5×33×28 | 1PCS |
| ST/DT-10000 | 1000oW | 42.5×33×28 | 1PCS |
Specifications
Technical Parameter of Johsun DT/ST Step Up and Down Transformer 110VAC 220VAC Voltage Converter
Power:500VA-10000VA
Input Voltage:110-120VAC 220-240VAC(Other Voltages Customization Available)
Output Voltage:220-240VAC 110-120VAC(Other Voltages Customization Available)
Number of Phases:1
Type:Step Up & Down Transformer/Voltage Converter
Input Connection:Plug/Terminal
Socket On the Body:Yes
Efficiency:80%
Power Supply Frequency:50/60Hz
Operatin Temperature Rate:0℃~+40℃
Protection:Fuse/MCB protection, Circuit Breaker, Fuse
OEM/ODM:Accept with MOQ
Spare Parts:Discussion
Warranty:12 Months
■ How to Choose This Transformer
Work from the equipment nameplate rather than from the transformer. Total the input watts of every load that can run simultaneously, then apply 1.5 × for heating and electronic equipment, 2.5 × for pumps and fans, and up to 5 × for compressors and refrigeration. On a 5KVA frame the practical ceiling works out at roughly 2,600W of resistive load, 1,600W of motor load or 800W of compressor load, which puts it in HVAC plant, packaged machinery and small sub-distribution rather than hand tools.
Three points decide the final specification:
- whether the unit will be hardwired through a terminal block or run from a cord and plug;
- the socket standard required in the destination market;
- the conditions at the installation point, since the frame needs 10cm of free air on every face and should not be boxed into a sealed cabinet.
■ Pricing, Ordering & Quality Assurance
Step Up & Step Down Transformer Price Range (100VA–10KVA)
Pricing for the DT/ST series depends on capacity, the input/output voltage combination you need, socket type, and whether a voltage selector or MCB protection is fitted. The table below gives indicative FOB levels so you can budget before requesting a firm quotation.
| Model | Capacity | Input / Output Voltage | Typical Application | Indicative FOB Price (per pc)* |
|---|---|---|---|---|
| ST/DT-100 | 100VA | 110V ↔ 220V selectable | Small electronics, chargers, control circuits | US$ 10–15 |
| ST/DT-200 | 200VA | 110V ↔ 220V selectable | Bench instruments, small appliances | US$ 11–16 |
| ST/DT-300 | 300VA | 110V ↔ 220V selectable | Audio equipment, laboratory benches | US$ 12-18 |
| ST/DT-500 | 500VA | 110V ↔ 220V selectable | Refrigeration units, printers, POS systems | US$ 12-20 |
| ST/DT-1000 | 1000VA | 110V ↔ 220V selectable | Power tools, kitchen equipment, single machines | US$ 21-30 |
| ST/DT-1500 | 1500VA | 110V ↔ 220V selectable | Motor-driven machines, imported appliances | US$ 23-35 |
| ST/DT-2000 | 2000VA | 110V ↔ 220V selectable | Compressors, welders, multi-outlet benches | US$ 25-37 |
| ST/DT-3000 | 3000VA | 110V ↔ 220V selectable | Small production lines, test rigs | US$ 33-43 |
| ST/DT-5000 | 5000VA | 110V ↔ 220V selectable | HVAC, industrial machinery | US$ 52-62 |
| ST/DT-7500 | 7500VA | 110V ↔ 220V selectable | Heavy workshop loads | US$ 75-87 |
| ST/DT-10000 | 10000VA | 110V ↔ 220V selectable | CNC equipment, whole-panel supply | US$ 85-112 |
* Indicative FOB Ningbo/Shanghai, standard configuration, based on 50 pcs per size. Not a formal offer — final price depends on your voltage combination, socket standard, enclosure and order quantity.
- The efficiency of the DT/ST series is 80%. For equipment with motors or compressors, the starting current will multiply — always reserve adequate power margin.
- Pure resistive / electronic loads: choose a transformer with capacity ≥ 1.5× the equipment rated power.
- Inductive loads such as motors and compressors: choose a transformer with capacity ≥ 2.5–3× the equipment rated power.
- This table is for reference only. Confirm the final solution according to the rated power and duty cycle shown on your equipment nameplate.
MOQ, Lead Time & Ordering Information
| Minimum Order Quantity (MOQ) | 1 PC for standard DT models. Smaller trial orders can be discussed for first-time buyers. |
|---|---|
| Custom / OEM orders | 50 PCS for custom voltage, custom socket layout, branded front panel or non-standard capacity. |
| Sample | 1-2 pcs sample available for verified buyers. Sample lead time 3-5 working days. |
| Lead time | 10-20 working days for standard models after order confirmation and deposit; 15-25 working days for OEM or custom configurations. |
| Packing | Export carton with foam. 1/2/6 pcs per carton – see the packing table above. |
| Payment terms | 100% TT IN ADVANCE FOR RETAIL/SAMPLE; 30% TT IN ADVANCE AS DEPOSIT, THE BALANCE BEFORE SHIPMENT. |
| Shipping | FOB Ningbo. CIF and door-to-door available on request. |
| Warranty | 12 MONTHS FROM DELIVERY DATE |
Certifications & Quality Assurance
DT/ST series step up and step down transformers are produced under our ISO 9001 quality management system, and every unit is 100% function-tested before packing.
CE Certified | RoHS Compliant | IEC Tested | ISO 9001 | EMC Tested | 12-Month Warranty
Certificates and routine test reports can be issued as PDF on request, for customs clearance, tender submissions or distributor onboarding.
■ FAQ
What can the DT-5000VA realistically power?
About 2,600W of resistive load, 1,600W of pump or fan load, or 800W of compressor load. Starting current rather than running watts is the limiting factor, which is why this frame suits HVAC plant, packaged machinery and sub-distribution rather than power tools.
Can it be hardwired instead of plugged in?

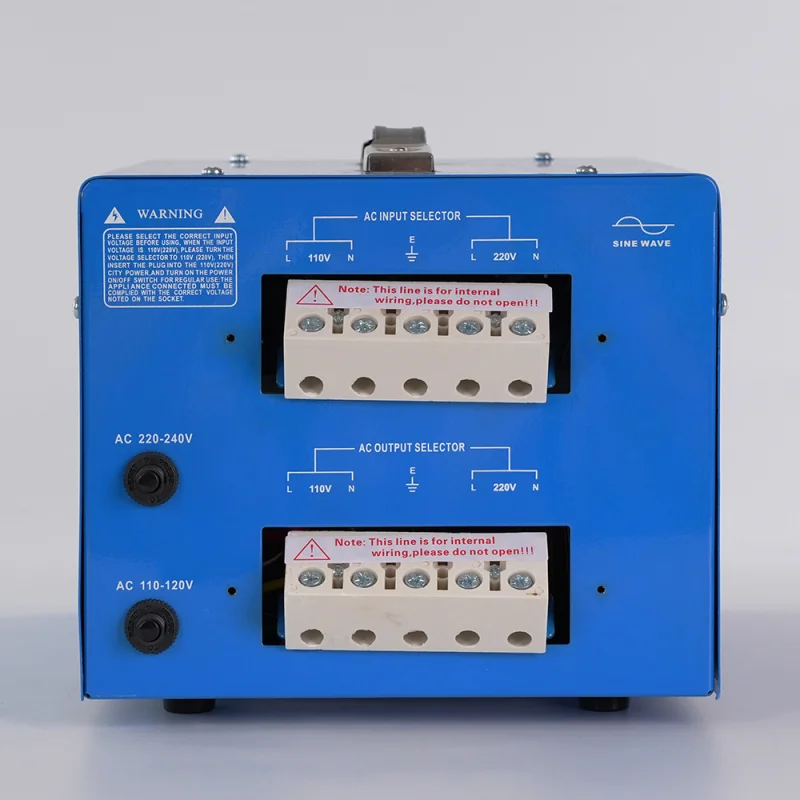

Yes. The 5000VA frame accepts a terminal-block input as well as an on-board socket. For permanent installations we recommend a dedicated isolator upstream so the transformer can be locked off during maintenance.
Does a transformer change the supply frequency?
No. It converts voltage only, so the output frequency always matches the input. Where a genuine 50Hz to 60Hz change is needed, a frequency converter is required instead.
Should I choose this unit or the 5KVA model in the ST range?
Both share the same core, enclosure and internal layout. The DT-5000VA is catalogued for step-up duty (110V to 220V) and the ST 5000W for step-down duty (220V to 110V); either direction is available on both models through the input voltage selector.
