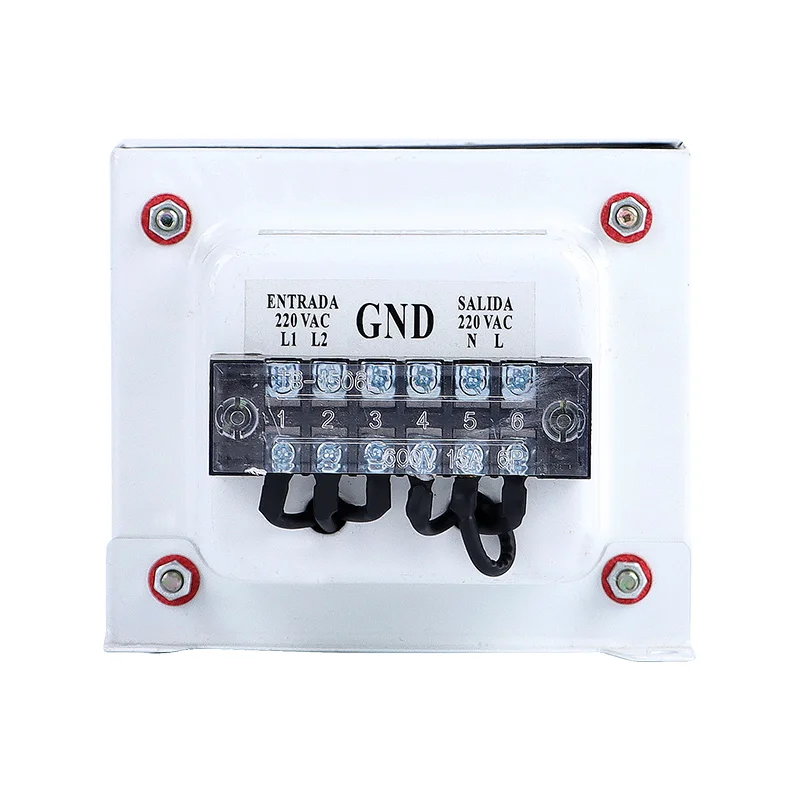

TC 220VAC (1)
TC 220VAC (3)

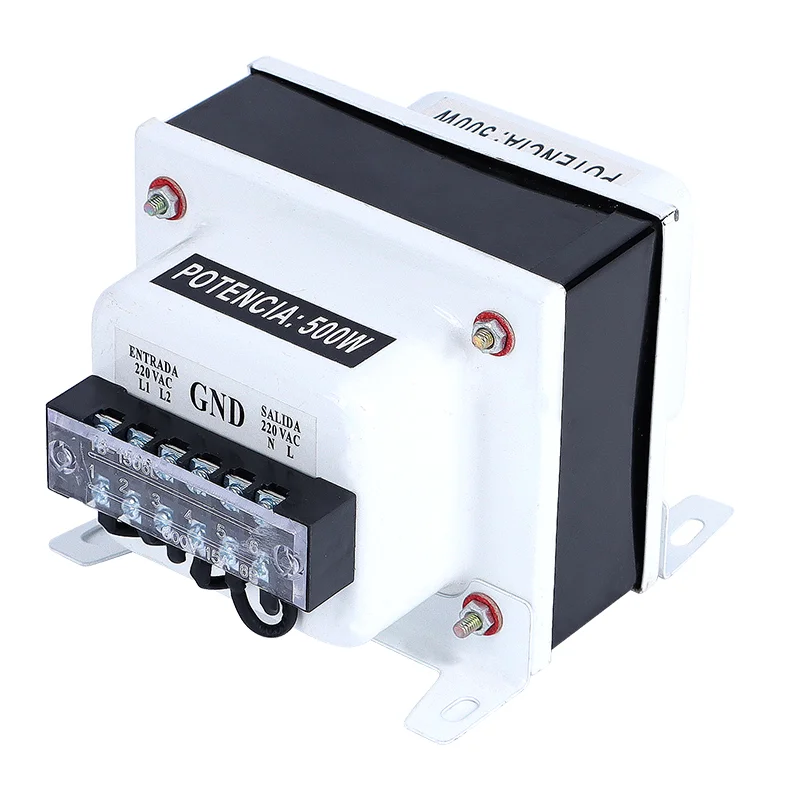

TC 220VAC (7)

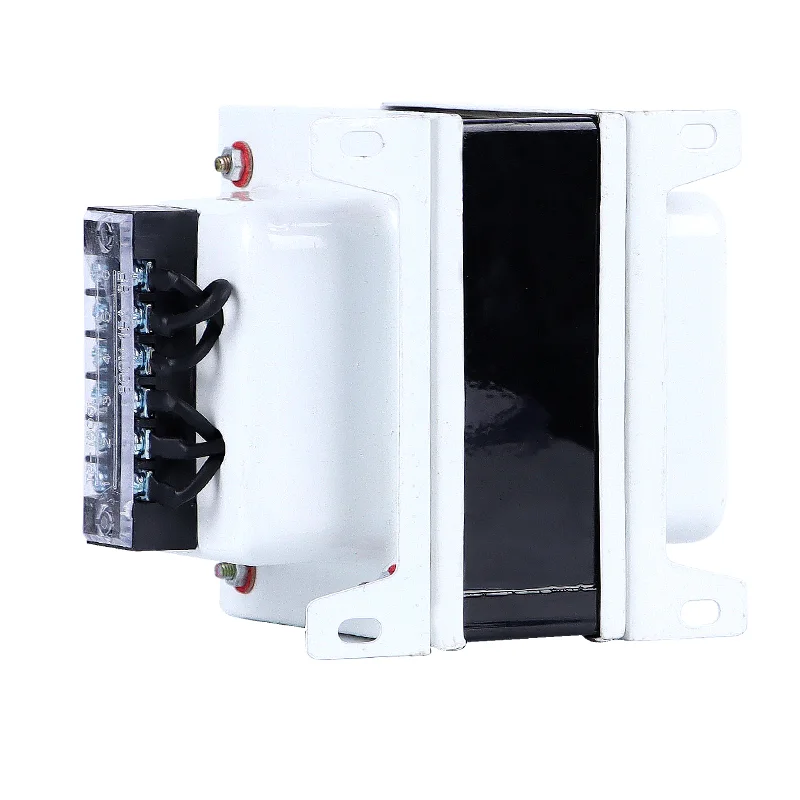

TC 220VAC (8)

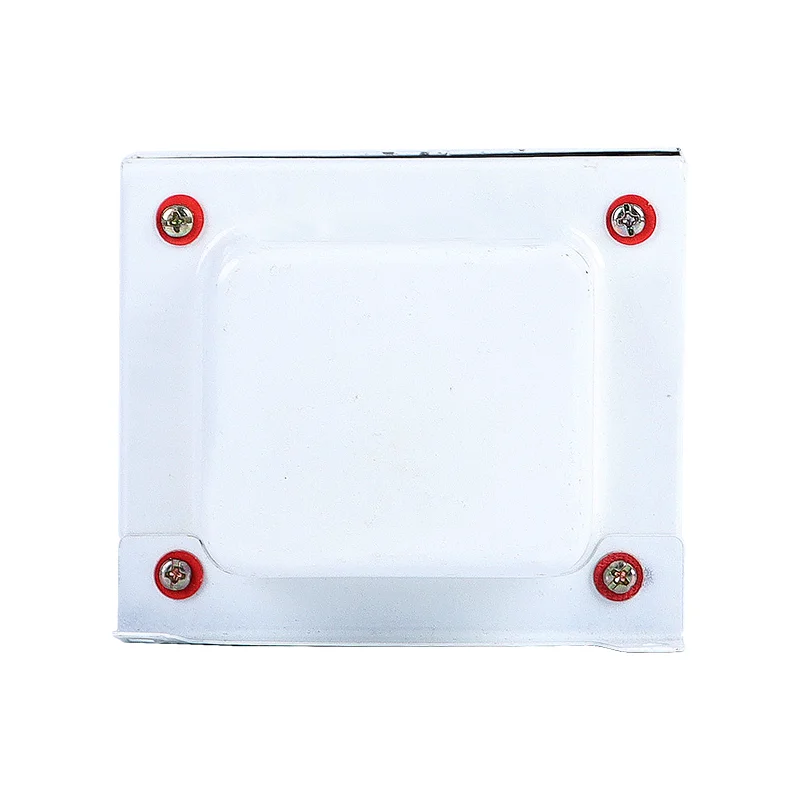

TC 220VAC (5)
TC 220VAC (2)
Media 1
Media 2
Media 3
Media 4
Media 5
Media 6

TC-220VAC

TDGC2J Series single phase manual voltage regulator (0.5–5KVA) offers 0–130V adjustable output, smooth operation, and high efficiency, ideal for labs, industrial equipment, and voltage calibration.

Share to:

Description

JOHSUN GROUP_页面_058

■ Application

The product is special auto transformer which is connected in different forms.Its output voltage can be regulated smoothly and continuously from zero to the maximum value.The provision of and indication meter is made for the models TDGC2J 0.5, 1, 2, 3, 5KVA.AI models find popular application in industries,agriculture and scientific researches,and are particularly suited to serve as ancillary facilities for such equipment as various machine tools,transistor curve tracers,projecting TV sets,and analytical instruments  in  petroleum  industry,etc.

■ Output Current

Model Phase Frequency(Hz) Input voltage(V) Cutput voltage(V) Max.Output current(A) Size/Package(cm) Qty
TDGC2J-0.5KVA



1





50/60





110





0-130

 5 52×20×34 4
TDGC2J-1KVA 9 41.5×24×43 2
TDGC2J-2KVA 18 41.5×24×43 2
TDGC2J-3KVA 27 66.5×26×49.5 2
TDGC2J-5KVA 45 33×28×30 1

Specifications

Technical Parameter of Johsun TDGC2J Single Phase Manual Voltage Regulator Contact Voltage Regulator American Style

Power:500VA-5000VA

Input Voltage:110VAC(Other Voltages Customization Available)

Output Voltage:0-130VAC(Other Voltages Customization Available)

Number of Phases:1

Type:Single Phase Manual Voltage Regulator Contact Voltage Regulator American Style

Input Connection:Plug/Terminal

Socket On the Body:Yes

Efficiency:80%

Power Supply Frequency:50/60Hz

Operatin Temperature Rate:0℃~+40℃

Protection:Fuse

OEM/ODM:Accept with MOQ

Spare Parts:Discussion

Warranty:12 Months

Questions & Answers

1. What is the power capacity range of the TDGC2J Series?

The TDGC2J Series offers a power capacity range from 0.5KVA to 5KVA, making it suitable for small to medium-sized applications that require precise voltage control.

2. What is the output voltage range of this voltage regulator?

The TDGC2J Series provides an adjustable output voltage range from 0 to 130V, allowing users to manually set the desired voltage level based on their specific requirements.

3. What type of applications is this voltage regulator typically used for?

The TDGC2J Series is commonly used in:

  • Laboratory testing
  • Voltage calibration
  • Industrial equipment
  • Home appliances
    It is ideal for any application where controlled and stable voltage is essential.

4. How does the manual adjustment feature work?

This series features a manual adjustment knob that allows users to vary the output voltage smoothly by adjusting the transformer taps. This provides precise control over the voltage output.

5. Does this voltage regulator offer any protection features?

Yes, the TDGC2J Series includes important protection features such as:

  • Overload protection to prevent damage from excessive current.
  • Short circuit protection to safeguard against electrical faults.
    These features ensure safe and reliable operation during use.
